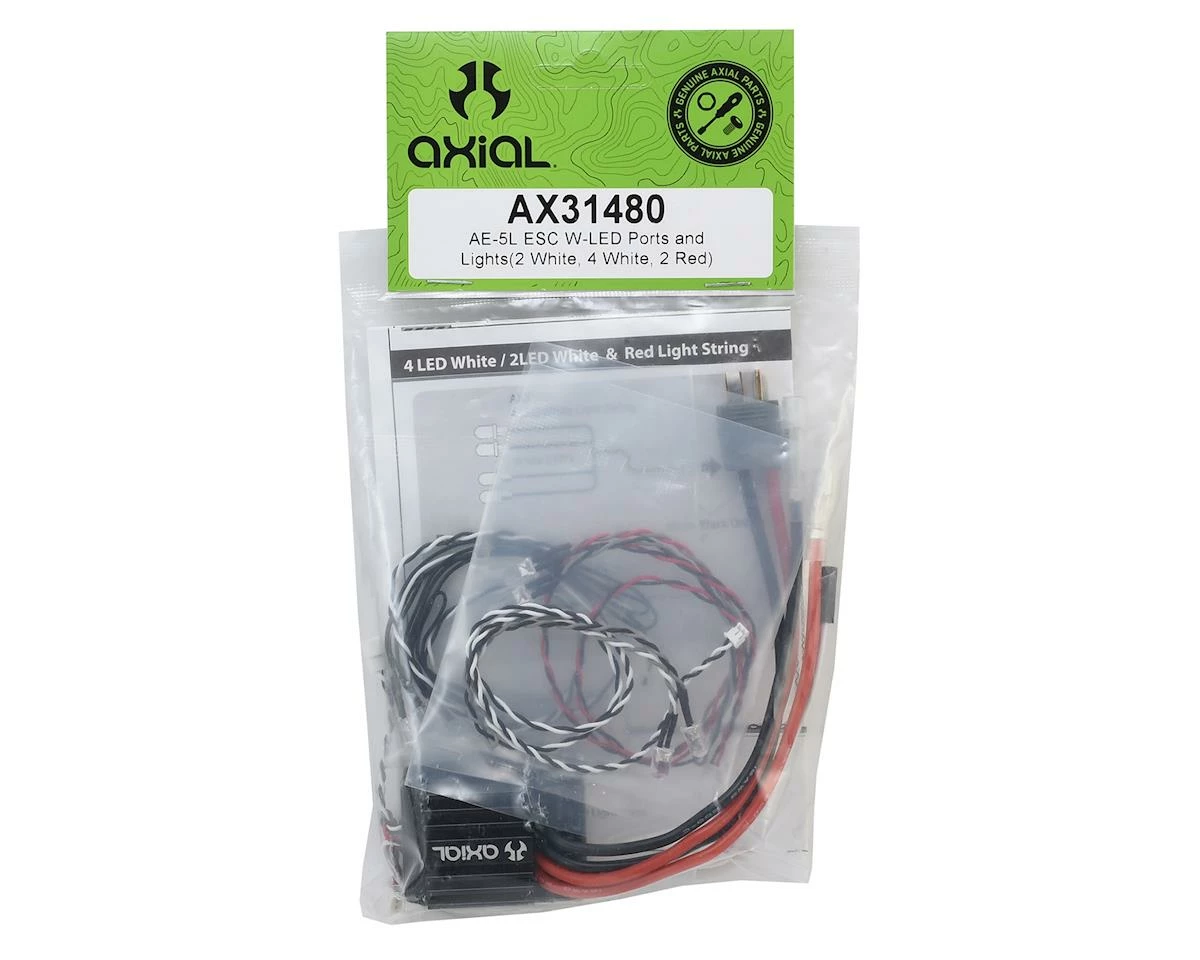

Axial AE-5L Waterproof 3S Brushed Crawler ESC w/LED Port & Lights
Original price was: $57.99.$34.79Current price is: $34.79.
- Secure Shopping Starts with Safe Payments
- Safe Shopping Guaranteed
- Unbeatable Quality, Unbeatable Value
- Top Quality Products
This is the Axial AE-5L 3S Brushed Crawler ESC with LED Ports, and included LED Lights.
For replacement AE-5L LED Light Strings, see part AXI31481.
AE-5L ESC WITH DRAG BRAKE, WATERPROOF
The Axial AE-5L ESC is 3S LiPo capable yet easily switched “in the field” between LiPo and NiMh battery types with a simple jumper – no more complex procedures.
- LED Light controller built-in with dual LED outputs for headlights/taillights.
- Male Star Plug lead – compatible with the most common polarized plug.
- Jumper 1 provides a simple plug and play choice between LiPo or NiMh.
- Jumper 2 switches Drag Brake settings.
- Waterproof design with Star Plug / laser etched heat sink.
Specifications:
Input Voltage: 2-3S LiPo, 5-9 Cells NiMH/NiCd
Size: 46.5x34x28.5mm
Weight: 70g
Motor Limit: 12T 2S/ 18T 3S
On-Resistance FET: .002
Rated/Peak Current: 180A
Braking Current: 90A
BEC Voltage: 6.0V 3.0A Peak
PWM Frequency: 1KHz

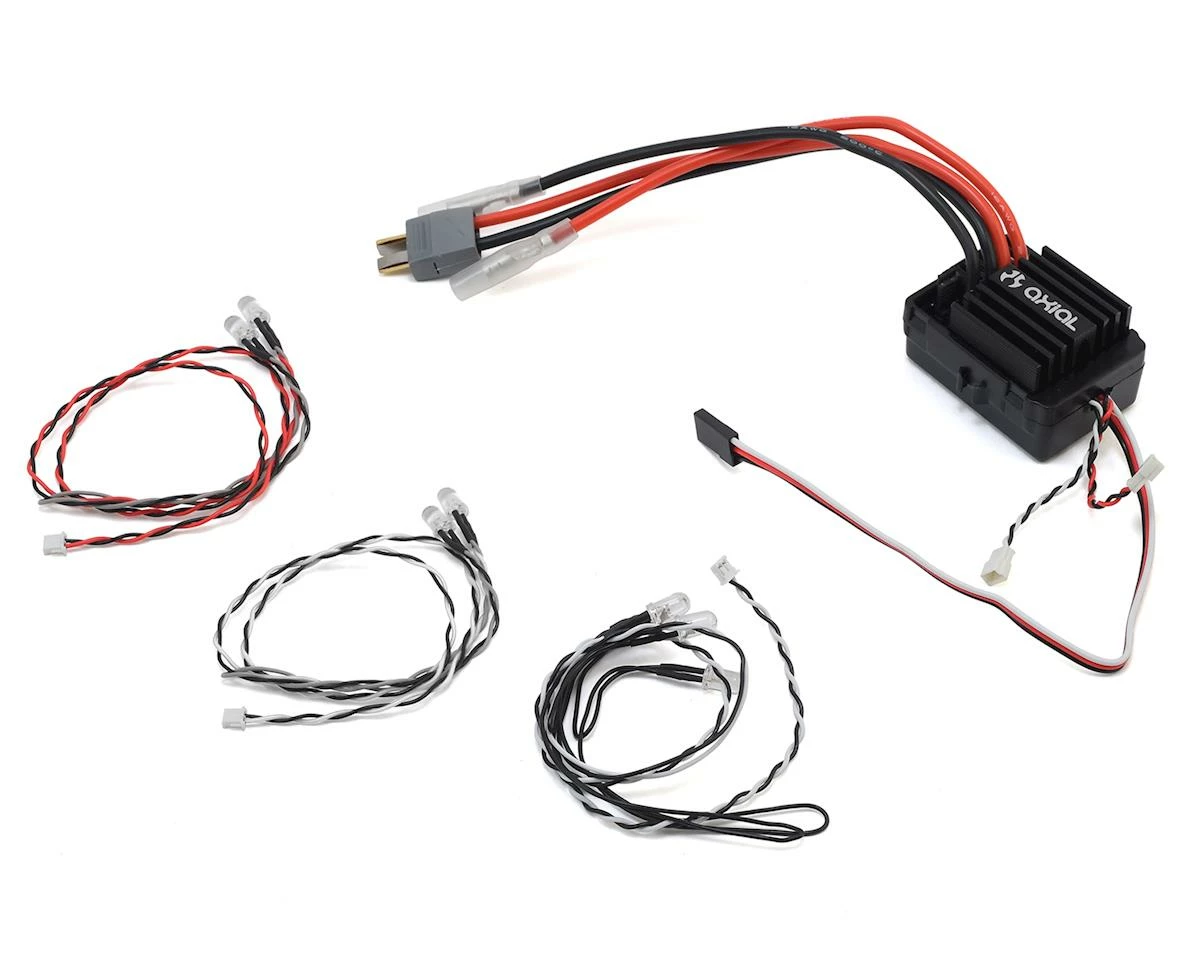

Includes:
- AE-5L ESC w/T-Style Connector
- Front 2 LED White Light String
- Rear 2 LED Red Light String
- 4 LED White Light String
NOTE: The AE-5L LED Output Leads are not compatible with old Axial LED Light Strings, or Third Party LED Light Strings! Connecting your old LED light strings to these leads will cause damage to the AE-5L ESC and the light strings. You must only use the included LED Light Strings with the AE-5L.
