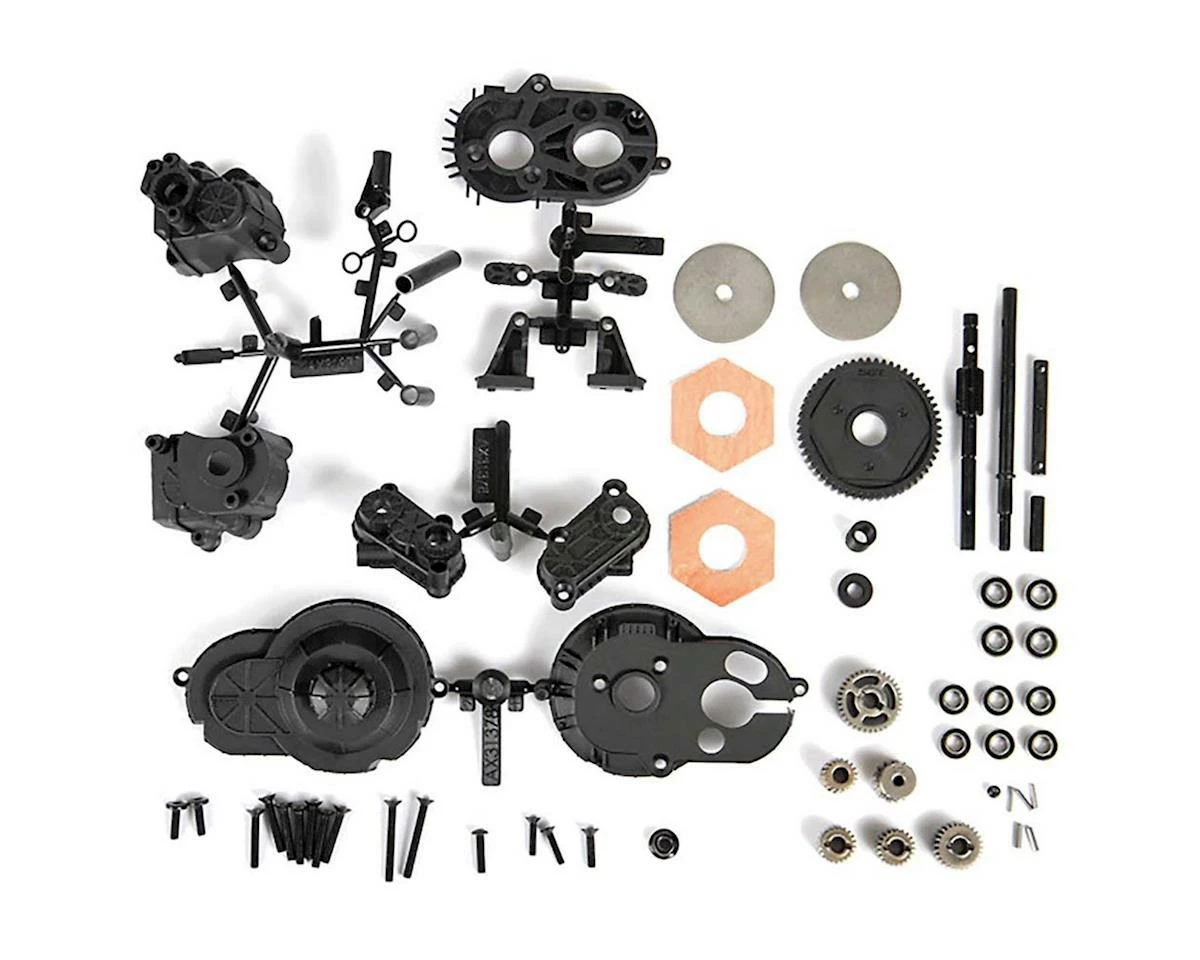

Axial SCX10 II Kit Complete Transmission Set

The Axial SCX10 II Kit Complete Transmission Set offers scale looks on the outside, with genuine Axial gears on the inside. The SCX10 transmission received a design makeover with special attention paid towards aesthetics by mimicking a real transmission with a bell housing, oil pan and a 4X4 transfer case! And that’s just the beginning. By sitting the transfer case lower into the chassis and centering the driveshafts with the axle input housings, Axial has created a more efficient driveline with better driveshaft angles which puts less stress on moving parts. Better driveshaft angles coupled with hi-pinion axles IS scale realism backed with performance. Also includes full set of ball bearings and ALL METAL INTERNAL GEARS for strength and durability.

Features:

• Transfer case design helps keep the driveshafts centered and as low as possible in the chassis
• Final drive ratio range 33.69 – 54.15 with available spur – pinion gear combinations
• Comes with 56T spur gear and 15T pinion / 32-pitch for durability
• ALL METAL INTERNAL GEARS for strength and durability
• Final drive ratio (FDR) 40.44 with a range from 33.69 – 54.15 – Original SCX10 was 33.06
• Scale looks mimics a full size transmission and transfer case

This product was added to our catalog on July 24, 2018
