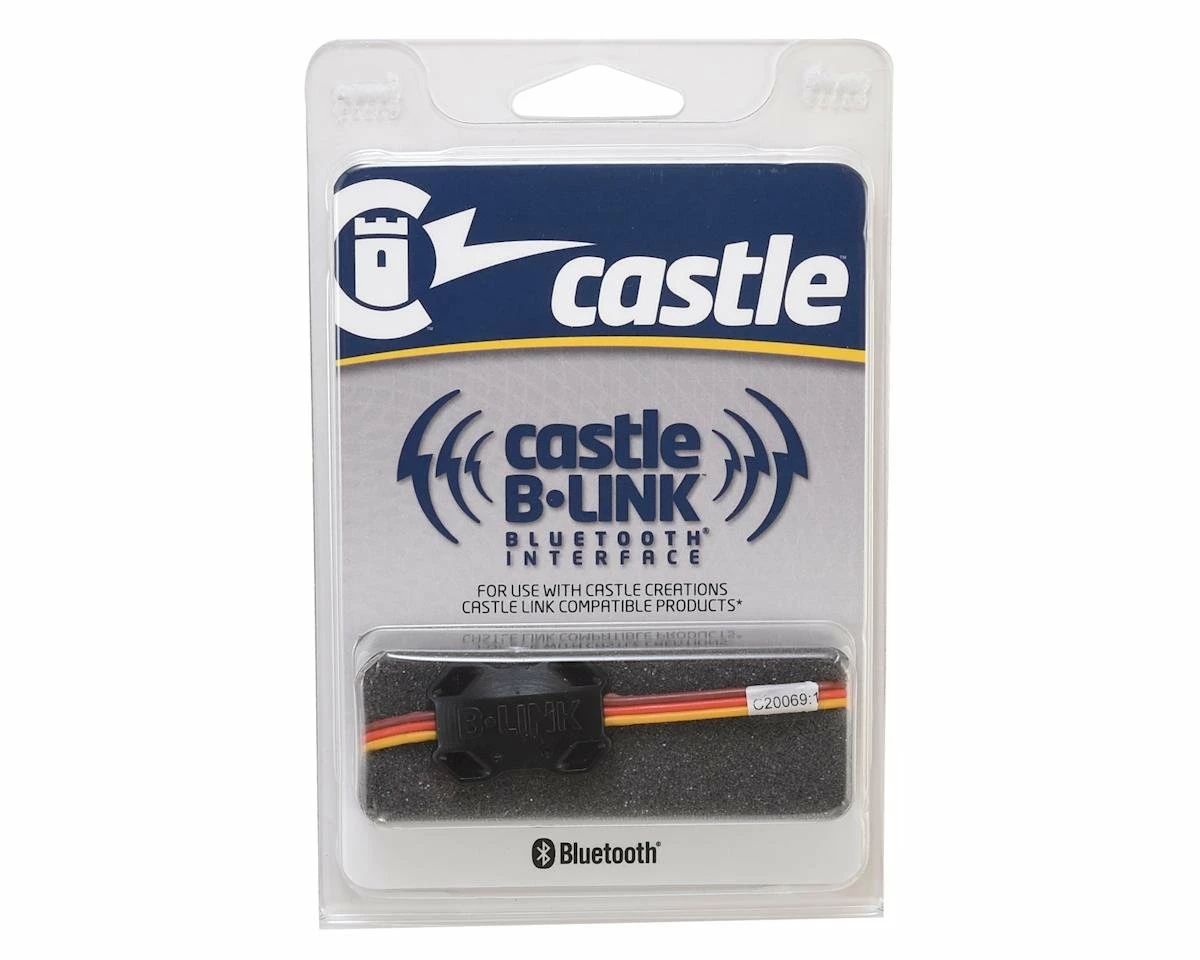

Castle Creations B Link Bluetooth Adapter

The Castle Creations B Link Bluetooth Adapter gives you access to powerful Castle Link ESC tuning features right from your iOS or Android smartphone! Castle Link is an essential component of customization for all Castle ESCs. While the controllers are plug and play, the benefits of fine tuning your Castle ESC through the Castle Link Programming Suite have only reinforced the sophistication and value of the Castle product line. Not only do you get the ability to adjust many variables to enhance your experience, you have the assurance that firmware updates for future features and improvements for your controller are provided at no cost to you.

Discover just how easily and quickly you can reign in tuning with the release of the Castle B•LINK BLUETOOTH ADAPTER, which will allow most Castle Link compatible products to be programmed via Bluetooth enabled mobile devices using the free application, with firmware updating to be added soon.

CASTLE LINK APP FEATURES:
The Castle Link App contains all of the same tuning options as the Castle Link USB Programming Suite used on a Windows compatible PC, now with even greater flexibility.

NOTE:

• It is not possible to view data logs through the app at this time, but developers will continue to add features such as this.
• All current Castle Creations ESCs, many older units and the BEC 2.0 and BEC Pro are supported, for a complete listing of compatible ESCs and accessories please view the PDF file in the resources tab above.
• App available for free at the Apple App Store and Google Play.

Features:

• WIRELESS BLUETOOTH COMMUNICATION allows you to interface with most Castle Link compatible ESCs and accessories to change parameters and update  firmware.
• COMPACT AND LIGHTWEIGHT at 1.20″ x .81″ x .25″ (30.48mm x 20.55mm x 6.55mm) and 0.23oz (6.62g), it can be installed in the vehicle or airframe without significantly increasing model weight.
• CONVENIENT WATERPROOF DESIGN allows you to quickly adjust settings in the field without disconnecting or disassembling the model. It can stay installed in the model or be easily swapped between models.
• FREE APP DOWNLOAD is readily available in the Apple App Store or Google Play. Once downloaded it does not require a data connection so it can be used in the most remote of areas and won’t use data.
• EASY TO USE application can be used with multiple B-Link Bluetooth Adapters or can store model information and allow you to use one adapter on multiple models.
• PASSCODE PROTECTED with (user-selectable) 4-digit code to prevent unwanted tampering with your settings.
• SYNC information between multiple devices by creating a free account (requires internet connection to sync database).

Specifications:
Input Voltage: Minimum: 4.5V – Maximum: 13V
Max Continuous Current: 10A
Maximum Burst Current: 20A
Dimensions (with wires): 7.25″ x 0.81″ x 0.27″ (184.15mm x 20.55mm x 0.27″mm)
Dimensions (w/o wires): 1.20″ x 0.81″ x 0.27″ (30.48mm x 20.55mm x 0.27″mm)
Weight: 6.62gm / 0.015lbs
Needed for Operation: Castle Link App found at Apple Store or Google Play.

This product was added to our catalog on May 1, 2018
