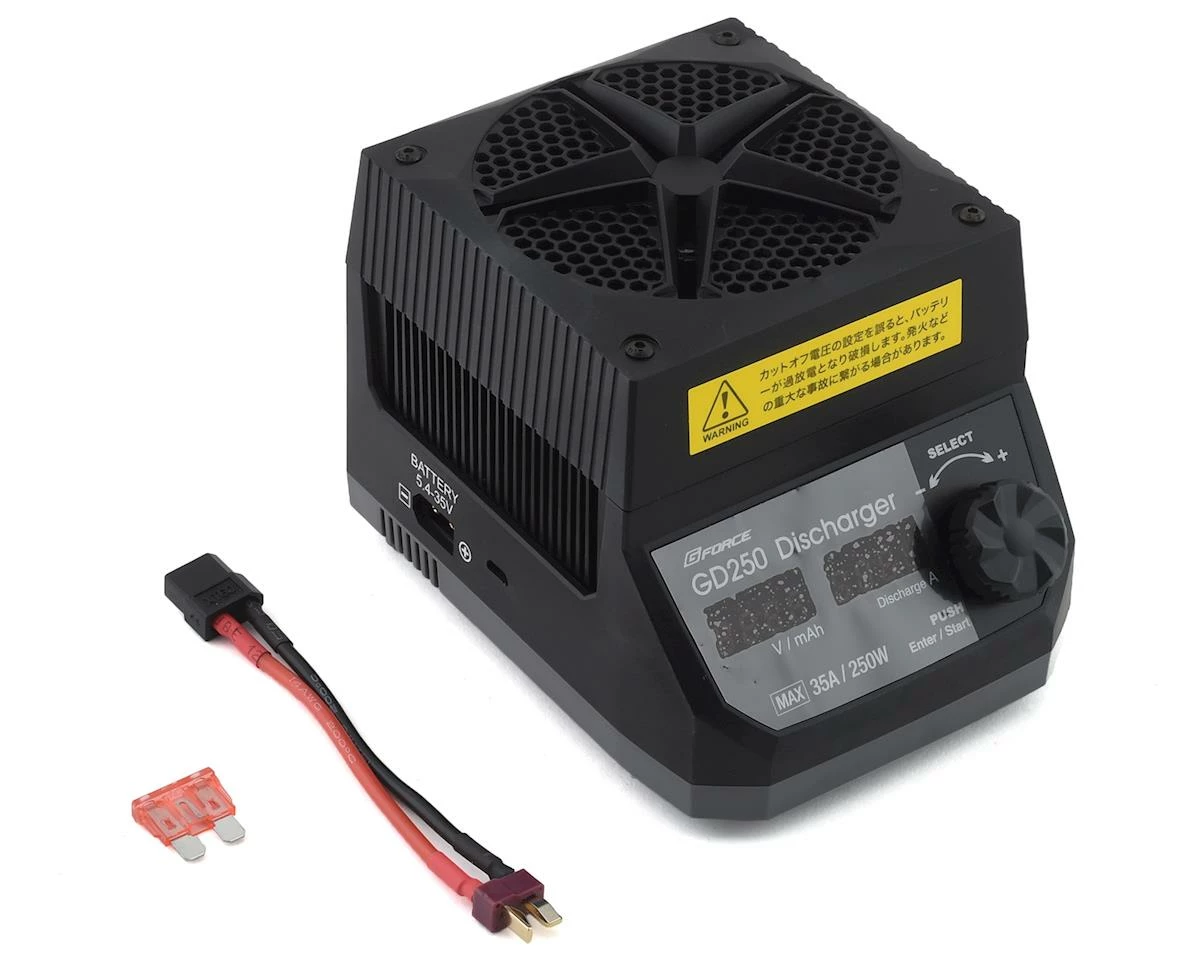

GForce GD250 35 Amp LiPo Battery Discharger (35A/250W)

The GForce GD250 35 Amp LiPo Discharger is a high current discharger capable of discharging all hobby batteries! Maximum discharge capacity of 35 A / 250 W, for batteries from 5.4 to 35 V! This allows for speedy storage discharge of large capacity batteries!

Equipped with a temperature sensing type large diameter cooling fan on a large heat sink, stable discharge power is easily attained. Discharge end voltage and discharge current can be set by the user. It is ideal for NiCD/NiMH break-in/refresh, and the LED display will show you overall battery voltage, discharge capacity, discharge current in real time, making it ideal for getting an idea of the true capacity when discharged in real world conditions.

NOTE: Balancing function between cells is not available. Please pay close attention to cell balance during use.

Features:

• Displays real time battery voltage, discharged capacity and discharge current
• Test battery capacity to identify batteries with the highest capacity
• Saves time when storage charging large capacity batteries
• Helps achieve peak performance from your batteries for competition

Specifications:
Accepted Voltage Range: 5.40-35.00V
Low Voltage Alert: <5.2V
High Voltage Alert: >35V
Max. Discharge Power: 250W
Discharge Current Range: 0.01A-35.00A
Current Consumption in Sleep Mode: <100uA
Current Display Accuracy: 0.01-10.00A ±60mA, 10.00-35.00A ±3%
Voltage Display Accuracy: 5.40-10V ±60mV, 10-20V ±120mV, 20-35V ±160mV
Capacity Display Accuracy: ±3%
Dimension: 136.6×104.8x107mm
Weight: 879g

This product was added to our catalog on September 29, 2020
