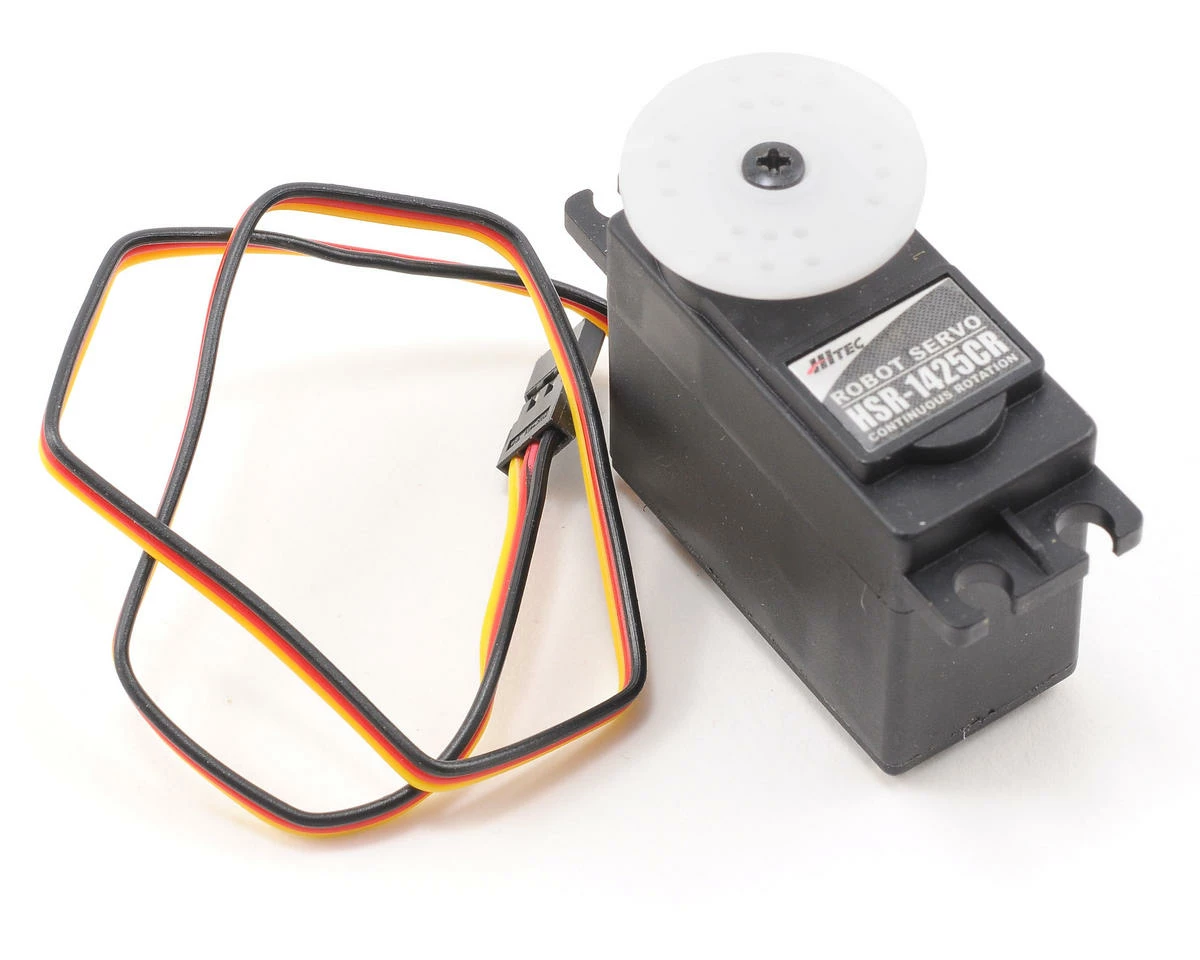

Hitec HSR-1425CR Continuous Rotation Robot Servo
Original price was: $21.99.$13.19Current price is: $13.19.
- Secure Shopping Starts with Safe Payments
- Safe Shopping Guaranteed
- Unbeatable Quality, Unbeatable Value
- Top Quality Products
The HSR-1425CR is the continuous rotation (non-proprtional) version of the HS-425HB ideal for robotic applications. This servo has a universal type connector.
Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (RPM): 43 ~ 52
Maximum Torque Range oz. / in.: 39 ~ 47
Maximum Torque Range kg. / cm.: 2.8 ~ 3.4
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 150 mA
Stall Current Draw: 640 mA
Dead Band Width: 10 µs
Dimensions (Inches): 1.59 x 0.77 x 1.44
Dimensions (Metric): 40.6 x 19.8 x 36.6
Weight (Ounces): 1.47
Weight (Gram): 41.7
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Connector Gauge (AWG) / Strand Count: 25 / 40
This product was added to our catalog on November 6, 2008
