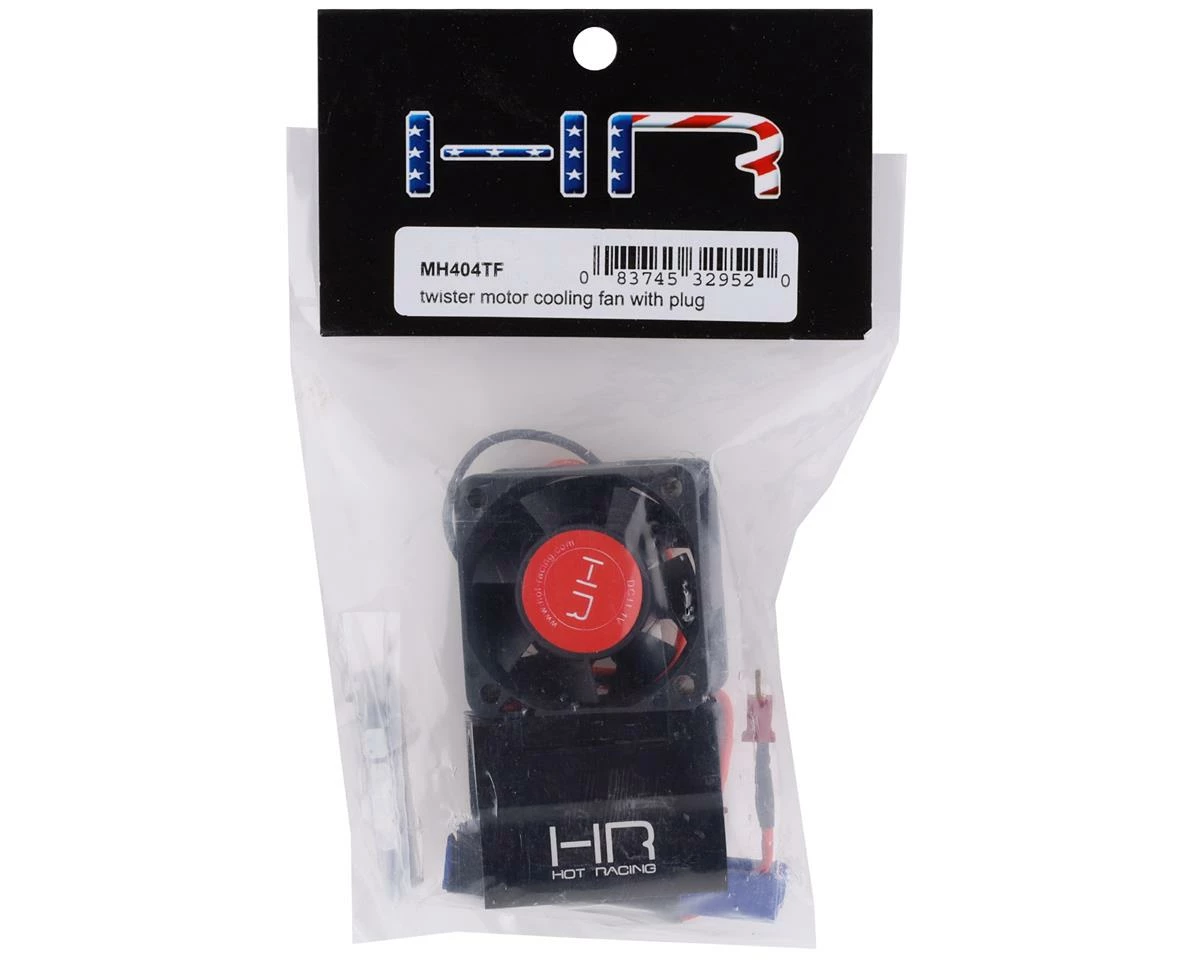

Hot Racing 6S BLX Twister Motor Cooling Fan w/Plug (11.1V)

The Hot Racing 6S BLX Twister Motor Cooling Fan is a universal heat sink and fan option for the Arrma 1/7 Felony, Infraction and Limitless models, as well as the 1/8 Mojave, Kraton BLX, Notorious BLX, Outcast BLX, Senton BLX, Talion BLX, and Typhon BLX 6S models.

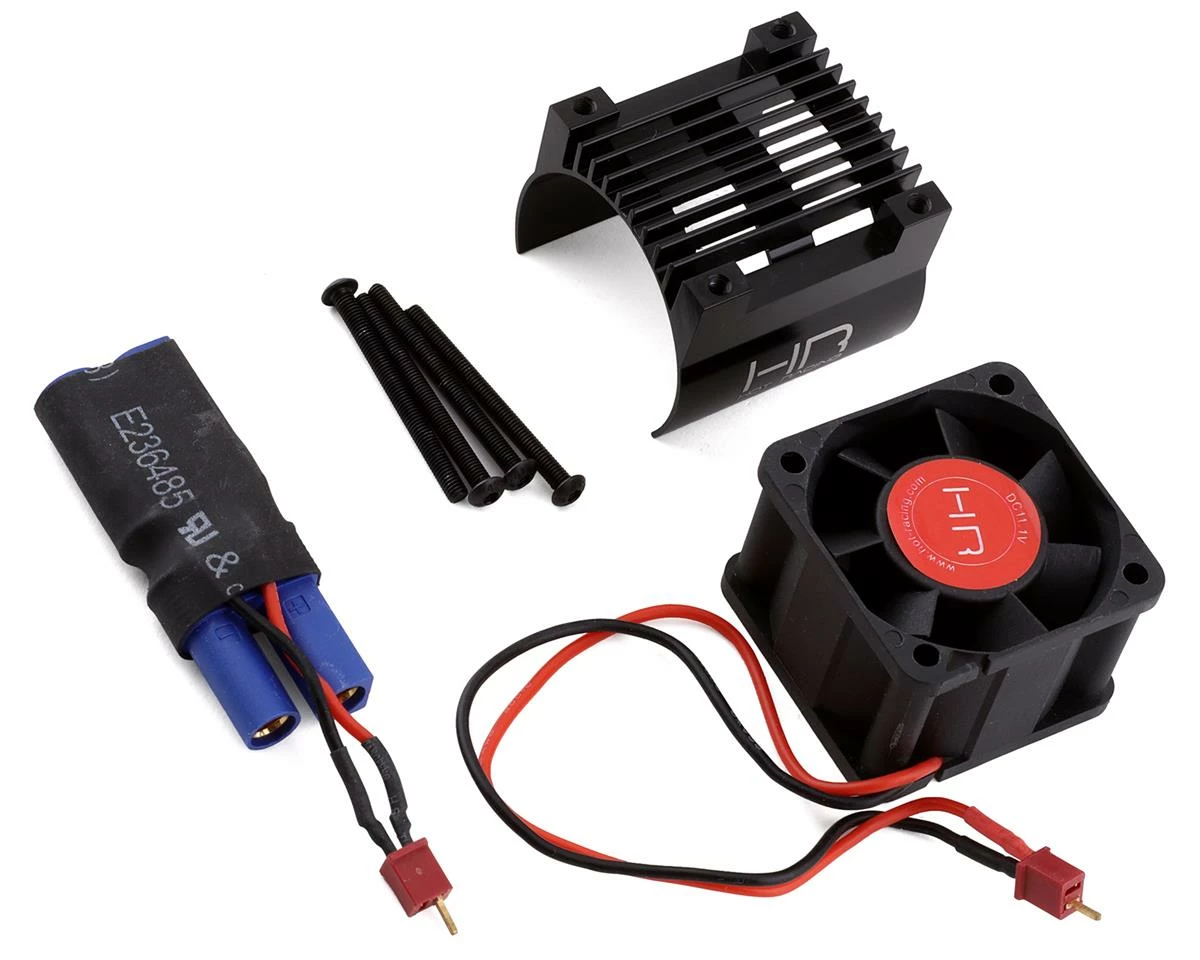

Features:

• 12,000 RPM Forced airflow over motor heat sink to increase cooling for improved efficiency and performance
• Large 40x40x28mm 7-blade fan
• Clip-on design for simple installation
• Black anodized aluminum heat sink provides efficient heat transfer
• Adapter with EC5
• 12AWG and 24 AWG silicone wire

NOTE:

• If you are using single 6 cell pack DO NOT use this system.
• Recommended to loosen fan screws during installation, then tighten again after installation. This will help minimize tweaking and binding the fan.
• Medium strength thread lock (blue threadlocking compound) on fan mount screws
• For off road ensure fan blades are protected
• This system uses a EC-5 Connector. If your system uses another type of connector, you’ll have to switch connectors, or use an adapter.

Specifications:
Size: 40x40x28.9mm
Input Voltage: 11.1V (12V max)
Lead length: ~170mm (may vary)
Mounting pattern: M3x32mm square
