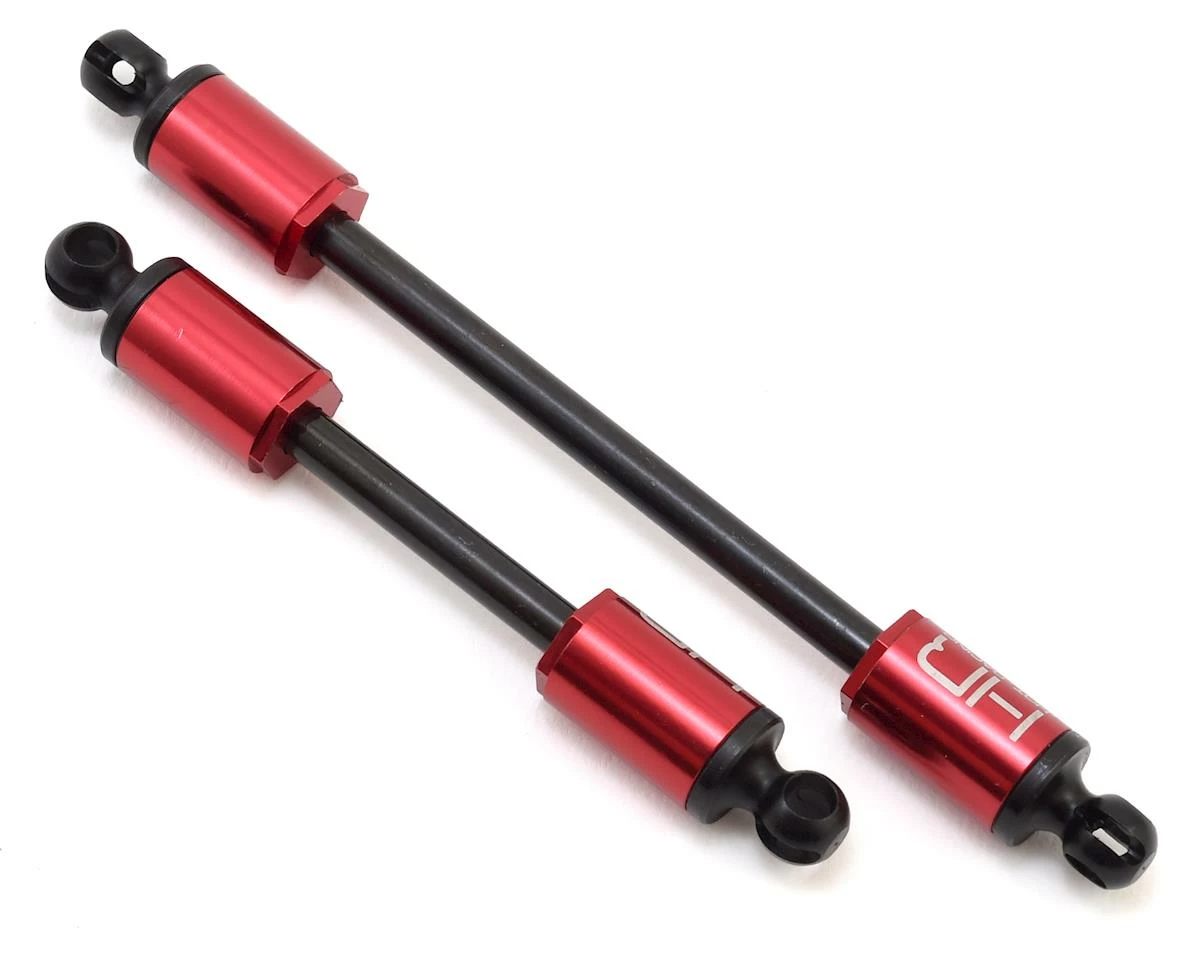

Hot Racing Axial SCX10 II Heavy Duty Steel Drive Shafts w/U-Joints (AXI90046/AXI90075 Kit Only)

The Hot Racing Axial SCX10 II Heavy Duty Steel Drive Shafts is a heavy duty steel front and rear telescoping driveshaft optioin for the Axial SCX10 II Kit vehicles (not RTR).

NOTE:

• This is not a complete driveshaft assembly. See list below for parts needed to build two complete driveshafts.
• Will NOT work with vehicles equipped with the RTR transmission.
• Must maintain telescoping assembly with grease

Features:

• Heavy duty CNC machined hardened carbon steel construction
• 6061 aluminum screw-on sleeves to capture steel telescoping pins
• Replaces factory plastic front and rear drive shafts

Specifications:
Short shaft compressed length: 65.5mm joint-joint
Short shaft extended length: 84.5mm joint-joint
Short shaft travel: ~19mm
Long shaft compressed length: 111mm joint-joint
Long shaft extended length: 130mm joint-joint
Long shaft travel: ~19mm
Outside diameter: 11.5mm
Shaft diameter: 5mm

Includes:

• (1) front steel drive shaft
• (1) rear steel drive shaft

Needed to Complete:

• SCX10 II Kit vehicle (not RTR) with 2-speed capable transmission
• Axial AXA0286 M4x2.5x13mm screw shafts are required
• Axial AX31148 W88 V2 Joint 10X15mm
• Axial AX31028 2x11mm pin
• Axial AX31114 (1) Part of WB8 V2 driveshaft

This product was added to our catalog on March 5, 2018
