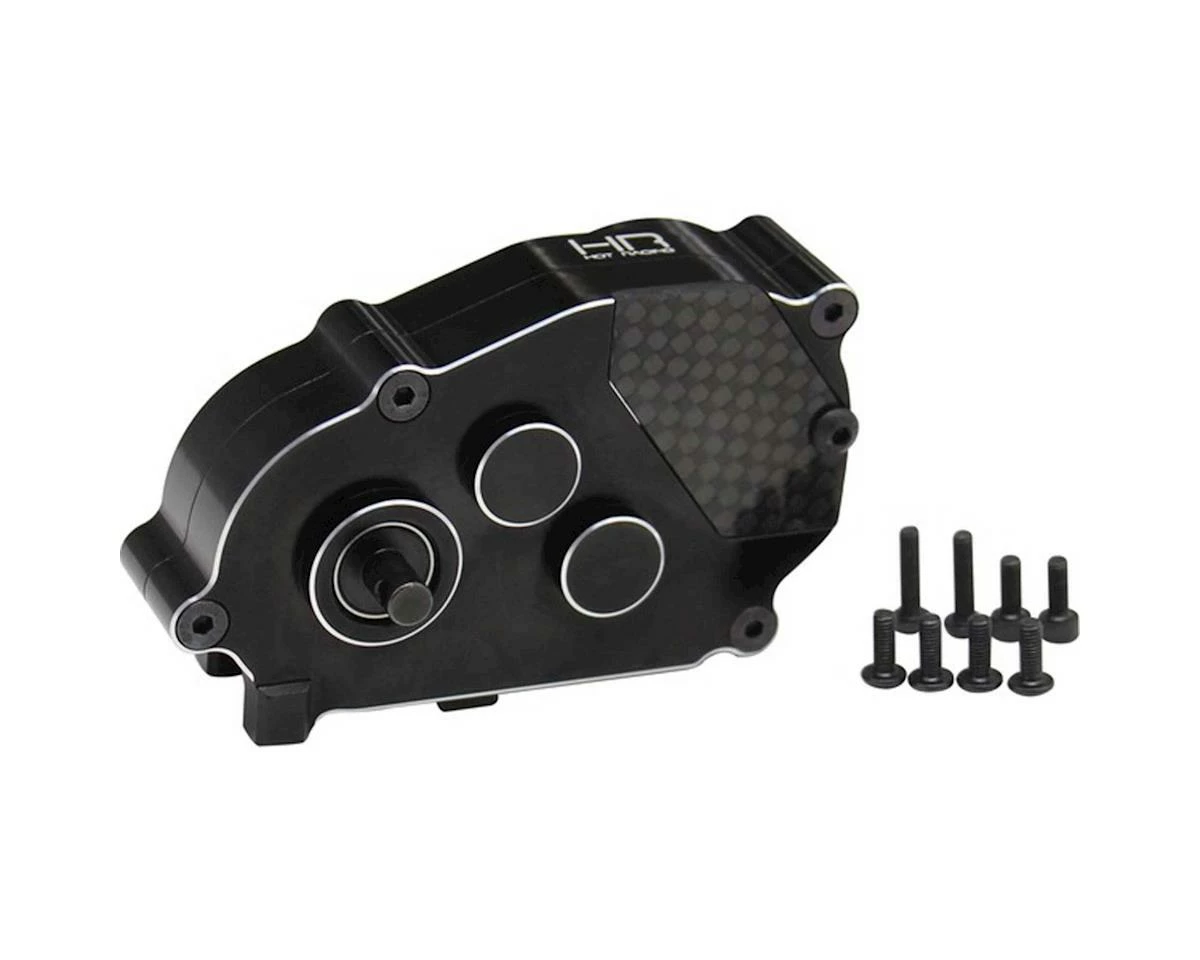

Hot Racing Low CG Transmission Gear Box (Axial 3-Gear)

This is an optional Hot Racing Low CG Transmission Gear Box for the Axial AX10, SCX10 and SCX10 II, as well as any other chassis that uses the standard Axial 3-gear transmission.

Features:

• CNC machined 6061 aluminum case
• Hardened steel gears
• Full ball bearing
• High gear reduction
• 11.4:1 internal gear reduction (in addition to the pinion/ 52T spur reduction)
• Supports 9T to 30T 48 pitch pinion gears
• Optional dig unit available (Hot Racing HRASCP38L01)

Includes:

• (1) low CG transmission
• (4) M3x8mm flat head cap screw
• (2) M3x8mm button head cap screw

Specifications:
Length: ~78.8mm
Width: ~18.8mm
Height: ~47.8mm

Comments:

• A 12T, 48P pinion will produce a 49.5:1 final drive ratio
• Optional dig unit available (Hot Racing HRASCP38L01)
• Replacement parts include: HRARSCP12SG (internal gear set – output shaft and gear are different), HRARSCP12CC (clear gear cover)
• Bearings are: 2x 10x15x4mm, 1x 4x10x4mm, 3x 5x10x4mm

This product was added to our catalog on March 6, 2018
