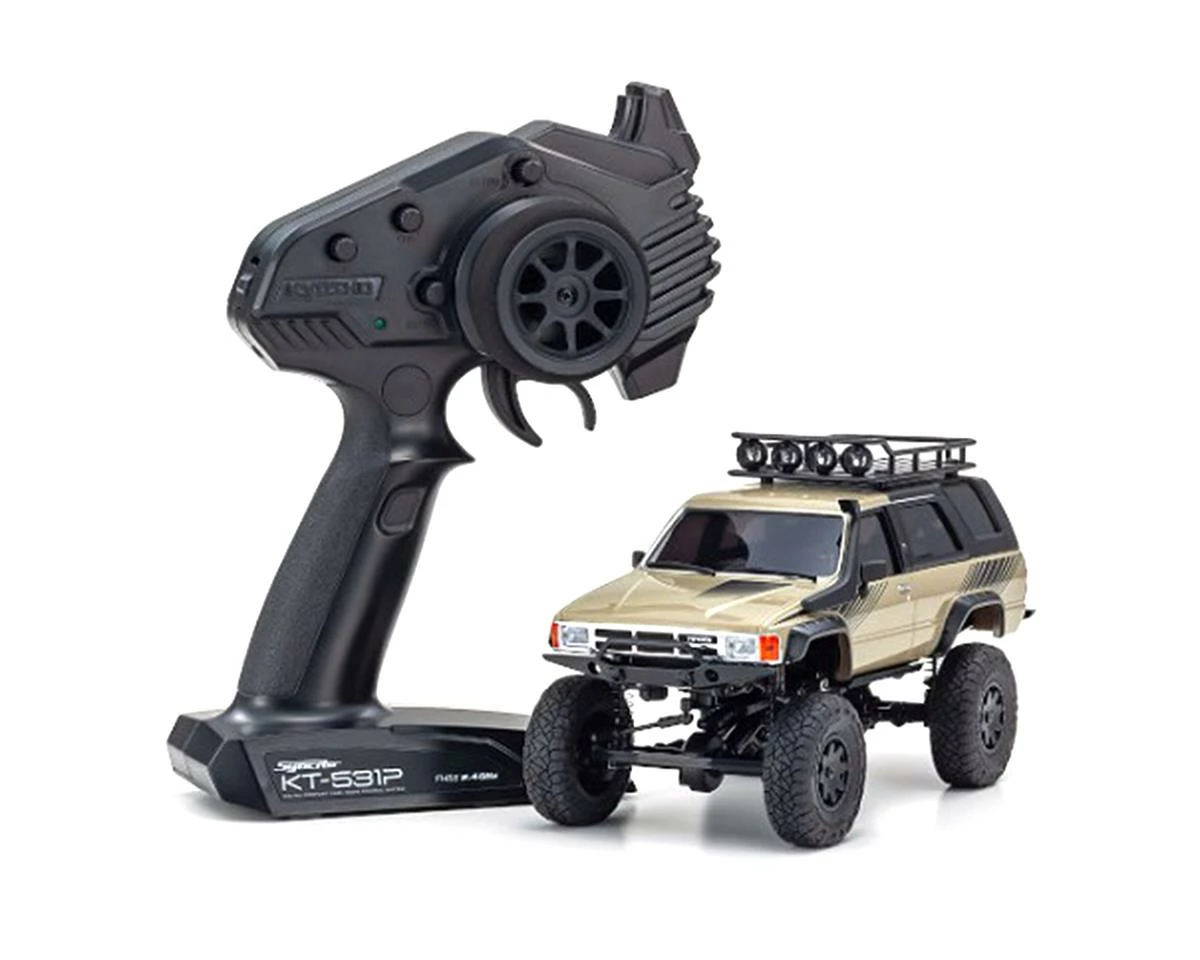

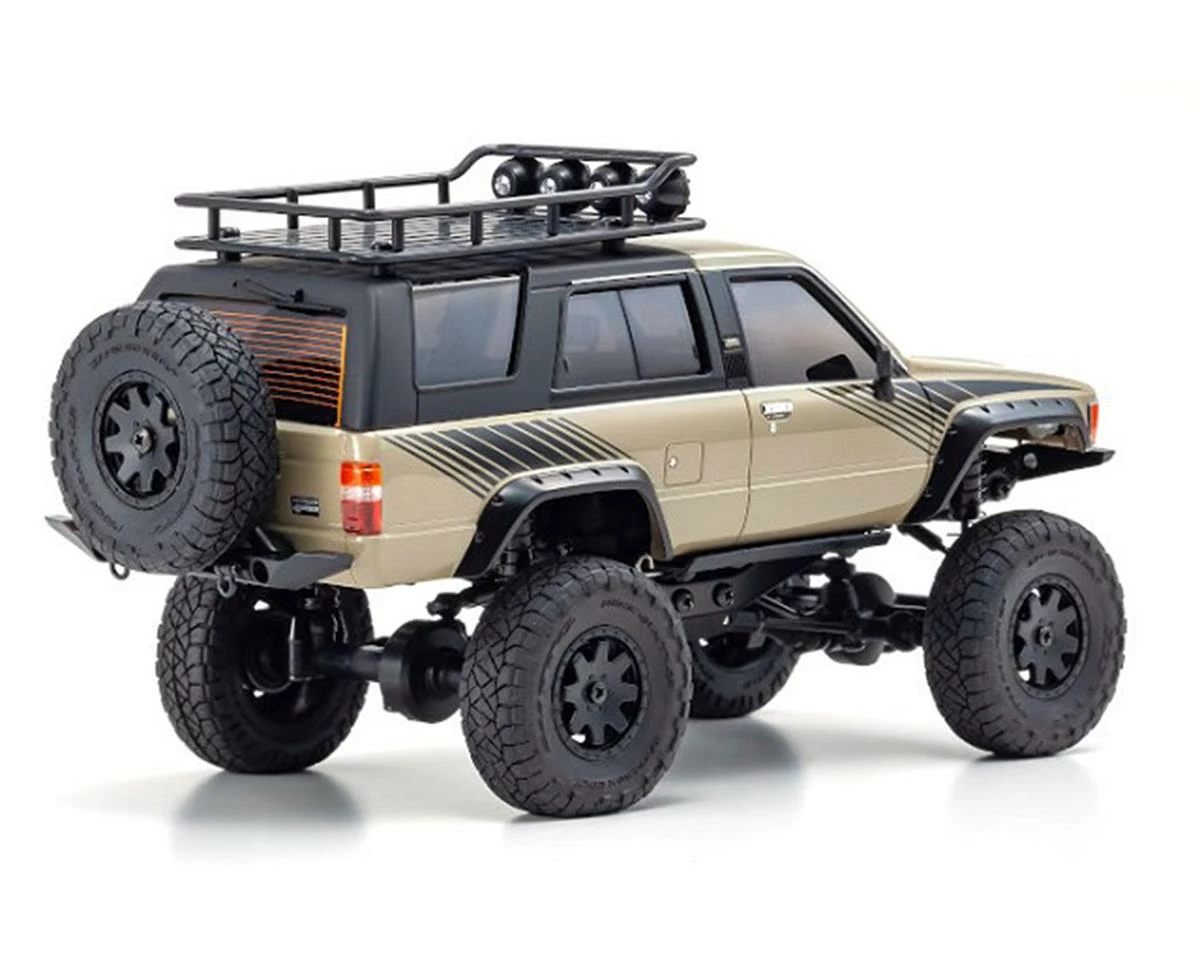

Kyosho MX-01 Mini-Z 4X4 Readyset w/4-Runner Body (Quick Sand) & 2.4GHz Radio

The Kyosho MX-01 Mini-Z 4X4 Readyset, complete with 2.4GHz Radio System, Toyota 4Runner Body with roof rack and snorkel, is a totally different addition to the popular MINI-Z series that is built with the attention to scale detail and quality design expected of Kyosho. Introducing the “MINI-Z 4×4”, a design that allows MINI-Z fans to expand their horizons with climbing and crawling capabilities. This scale 4×4 beauty features a fine-tuned overall design, superior driving performance and high-quality injection-molded scale body construction.

One of the main draws of the MINI-Zs has always been the greater emphasis of body detail and quality of finish, and the 4×4 surpasses existing benchmarks set by the MINI-Z series. The body is molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4×4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4×4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is eight AAA alkaline batteries (sold separately). Whether you take your MINI-Z 4×4 to your local park or just crawl across your own desktop, the Mini-Z 4×4 is a mini crawler that delivers a full range of scale crawling performance in a smaller, compact package.



• Molded with a thick body material for a crash resistance
• Extreme scale detail of Toyota 4Runner Body
• Incorporated ladder- style frame of real 4WD vehicles
• 3-link rigid axle suspension
• Specially designed high-torque steering servo
• High-torque 130-size motor

Length: 200.5mm

Width: 87mm
Height: 86mm

Chassis Type: MX-01

Wheel Base: 110mm

Tread F/R: 72.7mm

Weight: 223g (excl. battery)

Motor/Engine: 130 Class

Gear Ratio: 55.44:1/ 30.80:1/ 46.20:1/ 27.72:1/ 39.60:1/ 34.65:1

Front Tire Diameter: 42.0mm

Rear Tire Diameter: 42.0mm

Front Tire Width: 14.3mm

Rear Tire Width: 14.3mm

Battery: (4) AAA alkaline

Transmitter: Syncro KT-531P

Speed Approx.: 3.3km/h-6.6km/h  (Pinion gears 10T- 20T)

Running Time: Approx. 60 mins

• (1) Complete chassis with built in electronics
• (1) Factory painted body complete with fine details
• (1) KT531P 2.4GHz transmitter
• (6) Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
• (3) Pinion gear spacers

• (4) AAA batteries for the transmitter
• (4) AAA batteries for the chassis
