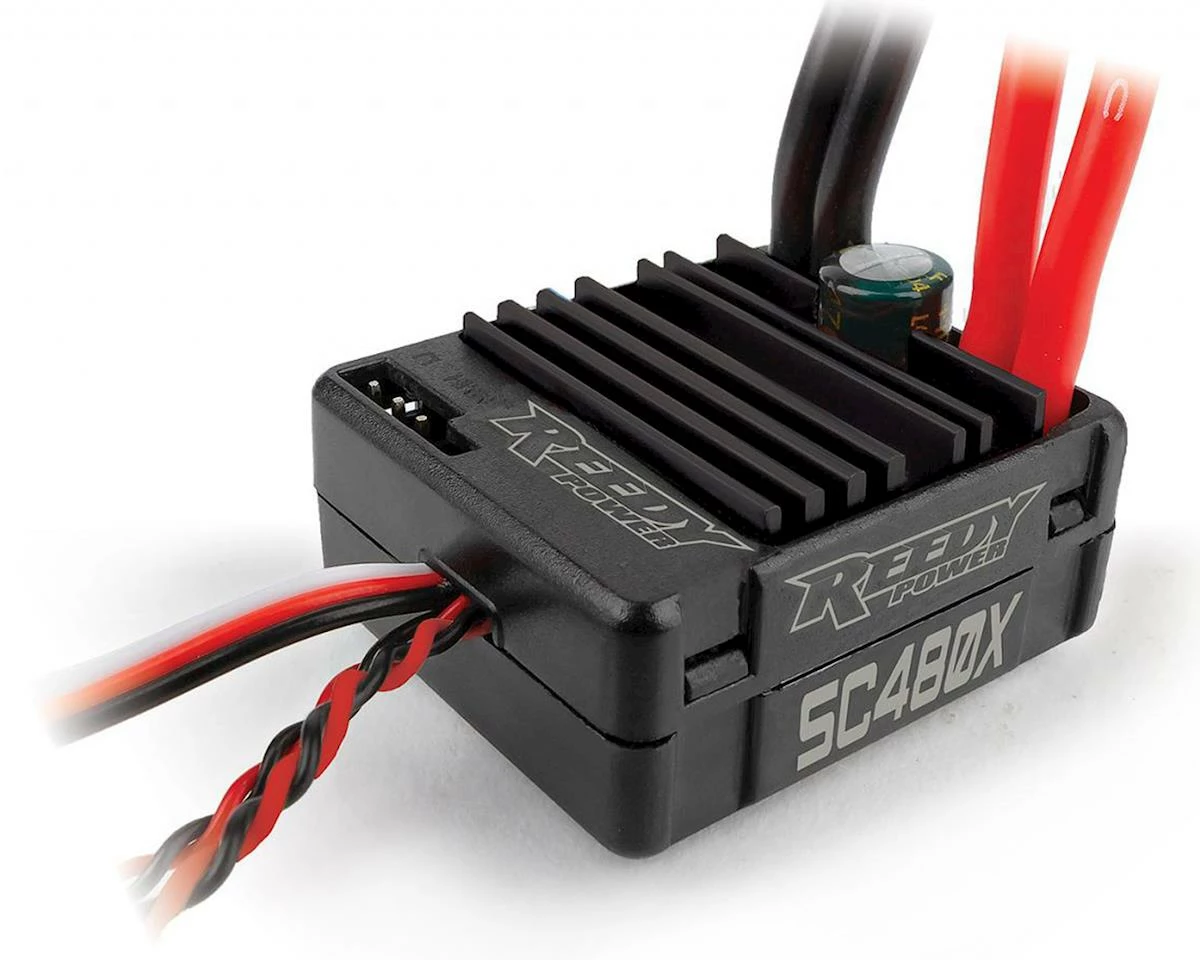

Reedy SC480X 1/10 Scale Brushed Crawler ESC

The Reedy SC480X 1/10 Scale Brushed Crawler ESC is a trail tested and proven, simple to use, economical, and powerful ESC for trail truck and crawler enthusiasts. This ESC offers excellent forward/reverse/brake feel, a wide range of adjustability, and robust hardware make the SC480X suitable for both trail truck and crawler applications.

The pre-programmed default ESC settings work very well in most situations, but if you want access to additional settings for fine-tuning, you can do so using optional Program Card (#27034). The following settings can be changed using the Program Card:

• Initial Drive: Throttle applied the moment the trigger is moved from the neutral position to the throttle range.
• Low-Voltage Cutoff: The cell voltage at which the ESC will shut off to protect the battery.
• Drag Brake: The brake force applied when the throttle trigger is returned to the neutral position.
• Max Reverse Power: The maximum reverse speed allowed relative to the forward speed.
• Punch Control: The aggressiveness of the application of throttle.

• ESC:
• Crawler/Trail Truck operation
• Dual auxiliary power leads
• Durable case with aluminum heat sink
• Water-resistant and dust proof
• Precision throttle, reverse, and brake control
• Fully adjustable brake and throttle functions (requires program card #27034)
• LiPo low-voltage protection
• Heavy-duty silicone wires
• Low-resistance T-plug battery connector
• Bullet motor connectors

• ESC:
• Cells: 2-3 LiPo, 5-9 NiMH
• Current (A): 80 cont./320 burst
• Resistance: 0.0014
• Motor Limit, 2S LiPo/5-6 NiMH: 540/550 12T 3-slot; 8T 5-slot
• Motor Limit, 3S LiPo/7-9 NiMH: 540/550 15T 3-slot; 10T 5-slot
• Low-Voltage Cutoff: Yes
• Dimensions (mm): 32 x 37 x 18
• Weight (g): 43
• BEC: 7.4V/5A
• Power Wires: 16-gauge
• Connector: Battery: T-plug. Motor: Bullet. Aux: FUT-J.
• Programming Value (*Default setting):
• Initial Drive: 2%, 5%*, 10%, 15%
• Low Voltage Cutoff (V/cell): 3.2, 3.3, 3.4*
• Drag Brake: 0%, 50%, 75%, 100%*
• Max Reverse Power: 50%, 75%*, 100%
• Punch Control: Soft*, Medium, Strong
