SSD RC Wraith Diamond Centered Rear Axle (Grey)

The SSD Wraith Diamond Rear Axle is the ultimate axle housing for your Wraith, Yeti or RR10 build! This axle housing features integrated upper link mounts for a reduced parts count, combined with the diamond style pumpkin to improve clearance. The removable third member holds the locker securely without the need for bearing caps, and more importantly replaces the stock pinion bearings with larger, more durable 5x13x4mm bearings.

Features:

• CNC machined aluminum axle case
• Available with a black or grey anodized finish
• One piece main housing design with removable third member
• Diamond style with integrated upper link mounts
• 13mm diameter axle tubes
• Larger input pinion shaft bearings
• Fits stock lower link mounts
• Fits stock Axial gears
• Hardened steel rear axle shafts
• Same width as stock AR60 rear axle
• Direct replacement for AR60 rear axle
• Compatible with Wraith, Yeti, RR10 & AX10
• Optional Skid available (SSD00054)

Includes:

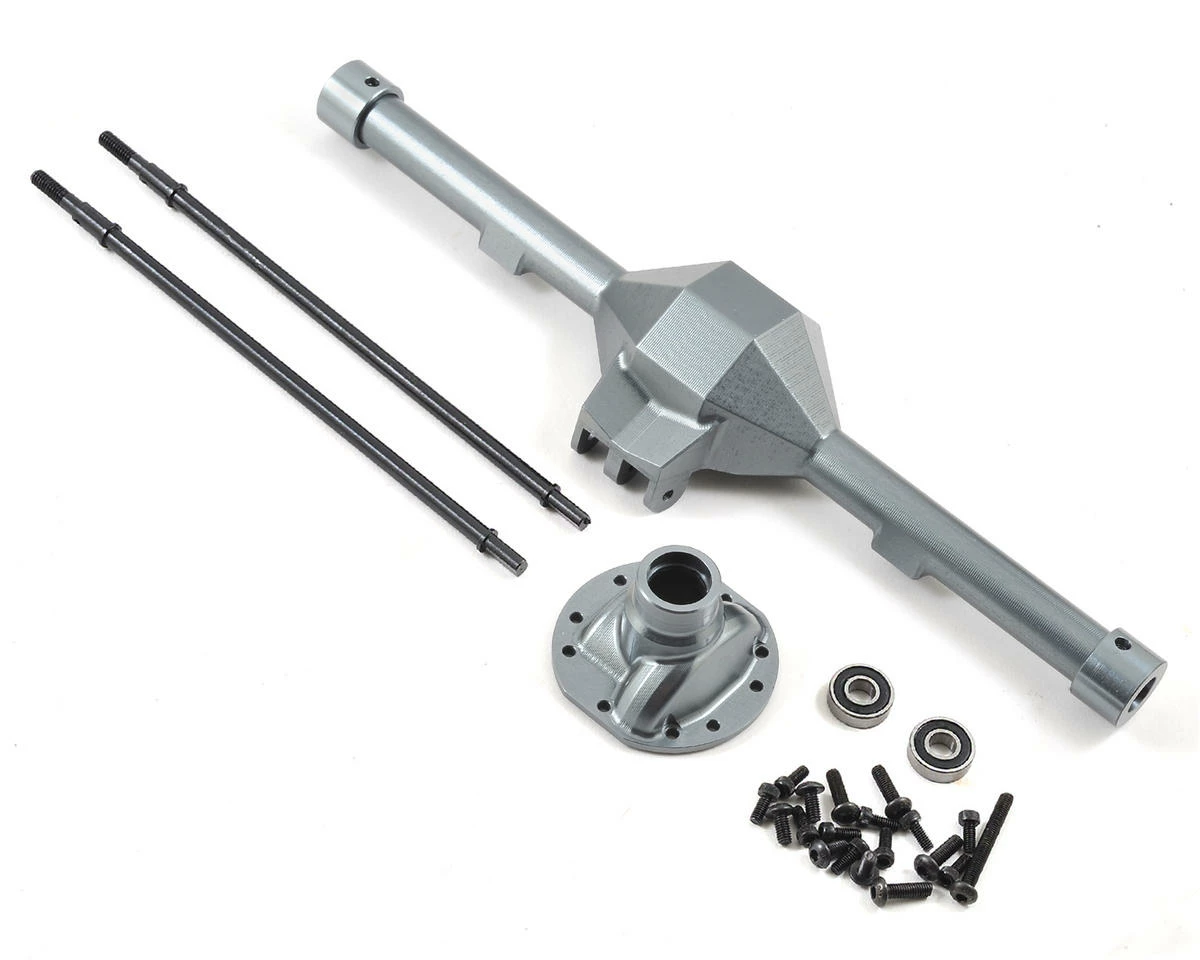

• Complete aluminum axle case
• (2) Axle Shafts
• (2) 5 x 13 x 4mm bearings
• (1) M3 x 25mm button head
• (4) M3 x 10mm  button head
• (4) M3 x 6mm button head
• (10) M2.5 x 6mm cap head

This product was added to our catalog on May 6, 2016
