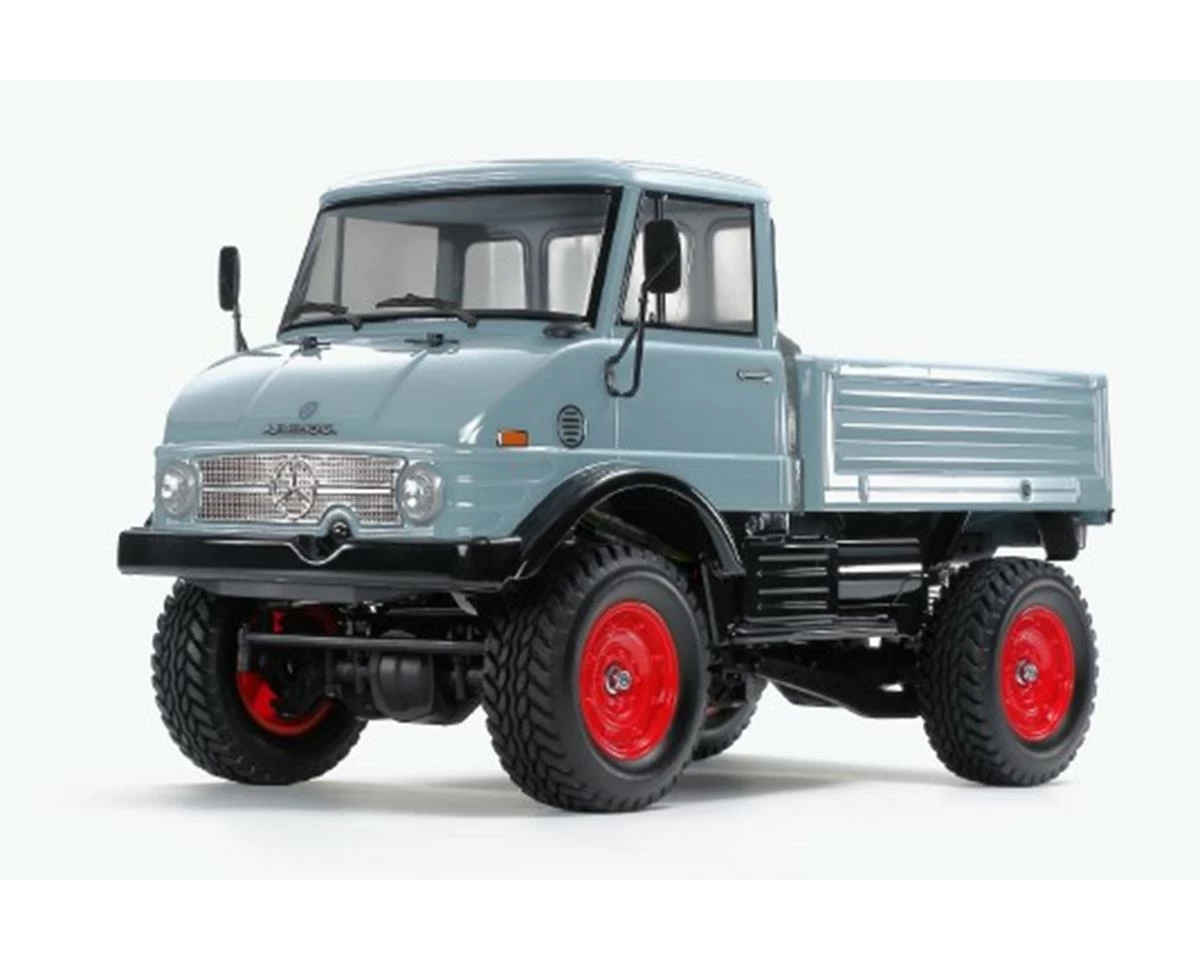

Tamiya Mercedes-Benz Unimog 406 1/10 4WD Scale Truck Kit (Blue/Gray) (CC-02)

The Tamiya Mercedes-Benz Unimog 406 CC-02 1/10 4WD Scale Truck Kit is a Limited-Edition version of the Unimog 406 Series U900. This version features a pre-painted body in Tamiya PS-32 Corsa Gray, unlike the standard kit in item TAM58692.

The multi-purpose Mercedes-Benz Unimog is a truck with unrivalled off-road performance and its name is an acronym which stands for the German description “Universal-Motor-Gerät.” The 406, which also has the ability to equip any of approximately 3,000 attachments for every imaginable task, now is depicted on the proven Tamiya CC-02 chassis.

Designed for a wide range of off-road environments, including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red wheels and grippy block pattern tires.

• 1/10 R/C model assembly kit
• Pre-Painted Polycarbonate body (Tamiya PS-32 Corsa Gray) with separate parts included for side mirrors and fuel tank, plus a metal-plated front grille and emblem
• Includes block pattern tires, and red ABS wheels with a depiction of beadlock designs
• Propeller shafts (short: 76mm) included
• The CC-02 chassis is designed for a wide range of off-road scenes including rocky terrain, and its ladder frame is inspired by full-size vehicles and is the base for its superior durability
• A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear
• Includes 540-brushed type motor
• LED lights included
• Includes TBLE-04S ESC – Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over

Length: 384mm

Width: 196mm

Height: 224mm

Wheelbase: 242mm

Adjustable Gear Ratio: Yes

Bearings: Plastic bushing

Body Material: Polycarbonate pre-painted body

Body Stickers: Included

Chassis Material: FRP Fiberglass Reinforced Plastic

Chassis Type: CC-02

Construction Type: Assembly Kit

Differential Type: Gear

Drive Type: 4WD

Motor: 540-brushed type

Scale: 1/10

Shock Damper: CVA Oil-filled damper

Terrain Use: Multi-Purpose

Needed to Complete:

• 2-channel radio
• Steering servo
• 7.2-7.4volt battery pack
• Compatible charger
