Team Brood Doomsday 540 FS-2 Handwound 5 Segment 540 Crawling Motor (13T)
Original price was: $99.99.$89.00Current price is: $89.00.
- Secure Shopping Starts with Safe Payments
- Safe Shopping Guaranteed
- Unbeatable Quality, Unbeatable Value
- Top Quality Products

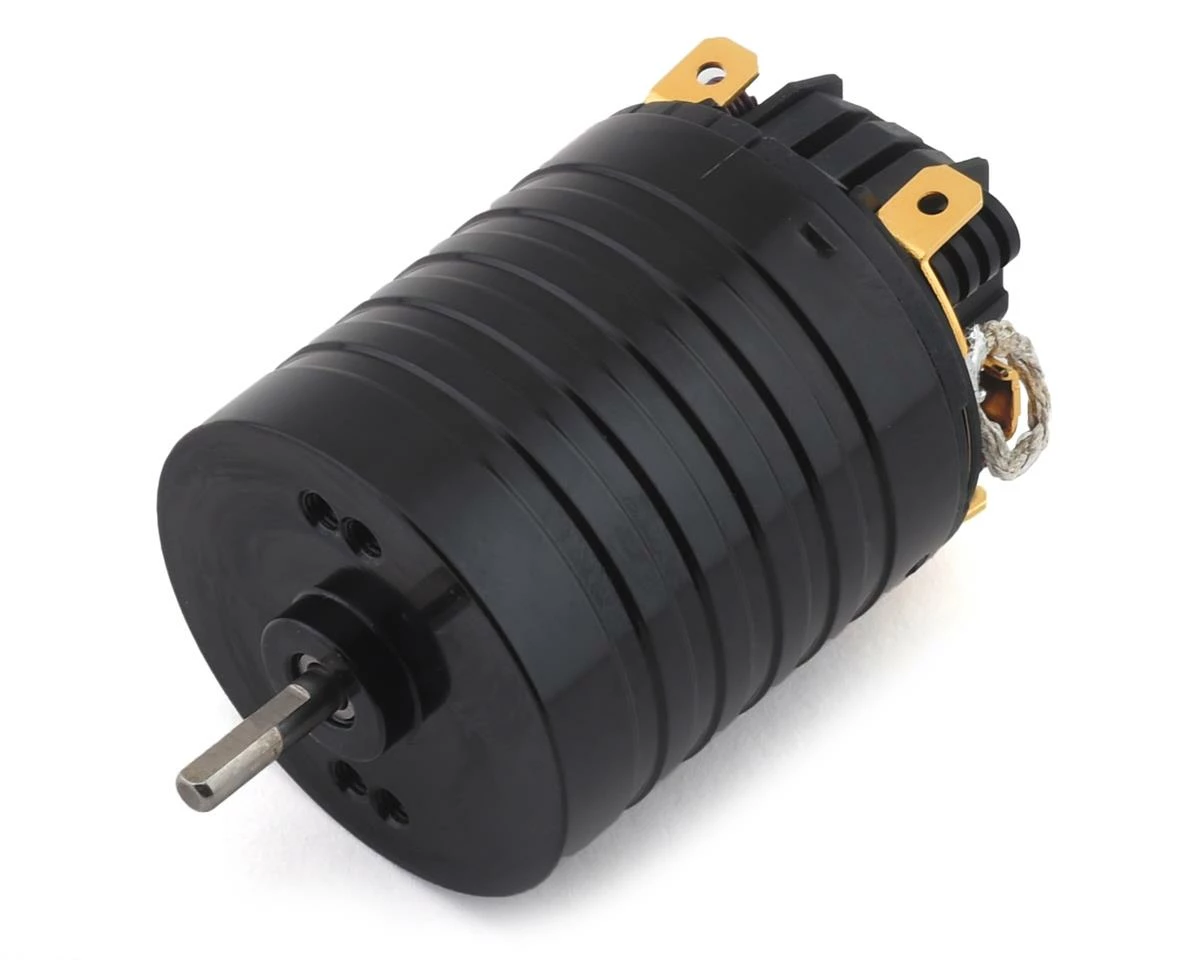

The Team Brood Doomsday 540 FS-2 Handwound 5 Segment Dual Magnet 540 Crawling Motor was designed to make some serious torque. Built upon Team Brood’s dual magnet design this motor not only features killer torque specs but it also has superior braking and holding power. The can was CNC machined for tighter tolerances and features a ribbed heatsink design. The Doomsday motors use a 5-Slot Straight Armature for the smoothest startup possible for your truck. Package includes one brushed motor.
Team Brood builds every motor from the ground up. The Doomsday armatures are hand wound, hand shimmed, given precise brush hood alignment, factory broken in and then dyno tested. These motors are truly made to squeeze out as much horsepower as possible.
Features:
- General:
- Dual Magnet Can with TDK FB9 magnets – Maximizes torque and braking
- 1.4mm thick Black E-Coated Can – Strengthens the magnetic field for maximum torque and braking with a durable finish
- Onboard Surface Mount Capacitors Reduces radio interference caused by electric motors
- Adjustable Timing – Fine tune the motors powerband to optimal settings
- Rebuildable – Can be rebuilt to provide maximum power and longevity
- Dual Precision Ball Bearings – Reduces friction provides increased efficiency and power
- Aluminum Heatsinks – Additional cooling provides for a more efficient motor

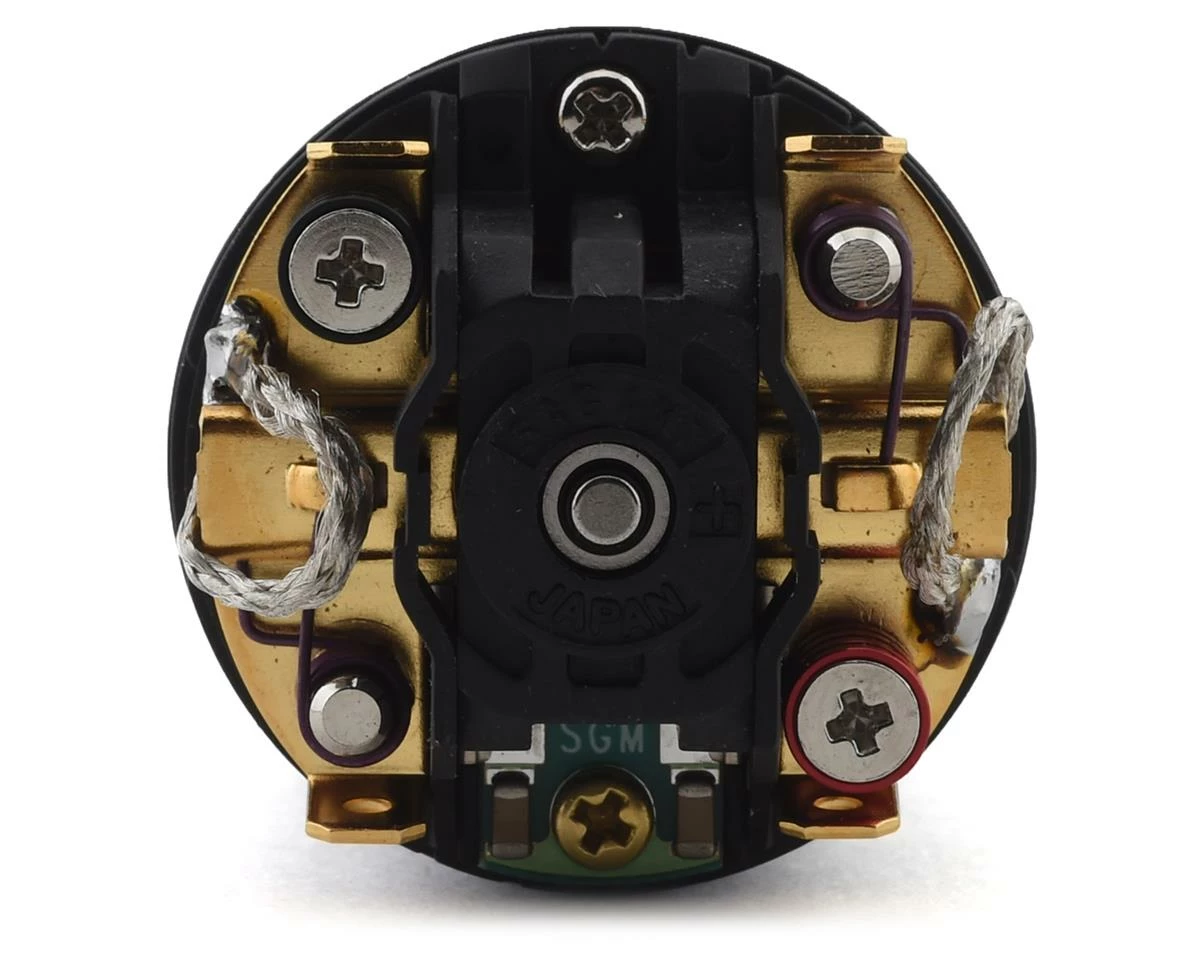

- Standup Brushes – Long lasting performance brushes
- Springs – Optimal tension springs
- Hand-Wound Armature:
- Processed from start to finish using the state of the art techniques, materials and equipment.
- Pattern wound by the best winders in the world using the highest grade copper wire
- Welded using high-tech silver brazing rod
- Dipped with the aerospace grade epoxy resin
- Precision epoxy balanced
- Tested with precision meters
- Engraved with the wind on the armature shaft
- Build Features:
- Diamond Trued Commutator – Provides a perfectly round cut
- Zapped Magnets – Assures magnets are at full and even strength
- Cleaned and Lubed Bearings – Allows for the smoothest operation
- Precision-Spaced Armature – Centers the Armature in the magnetic field with minimal play
- Precision-Measured Springs – Assures both springs are at the optimal tension
- Aligned Brush Hoods – Allows the brushes to make full contact allowing even wear and max power
- Tested – Each component is tested on calibrated
- Dyno-Tuned – Guarantees the motor is producing its maximum power, rpm and torque
- Fully Broken-In – Ready to install and run
- 30 Day Limited Warranty
- Build:
- Poles: 2
- Turn: 13
- Magnets: Dual TDK FB9
- Brush Style: Standup
- Voltage Input: 3.7v-14.8v
- Break-In: 570 seconds at 3 volts, 30 seconds at 3.5 volts
- Armature:
- Construction: Handwound
- Lamination Size: .014″
- Stack Design: Straight
- Slots: 5
- Web: 5mm
- Wire Type: Copper Round
- Balance Type: Epoxy
- Dimensions:
- Weight: 8 ounces
- Length: 54mm (2.125″)
- Diameter: 36.10mm (1.41″)
- Shaft Size: 3mm (1/8th)
- Mounting Pattern: Standard 540 3x25mm
