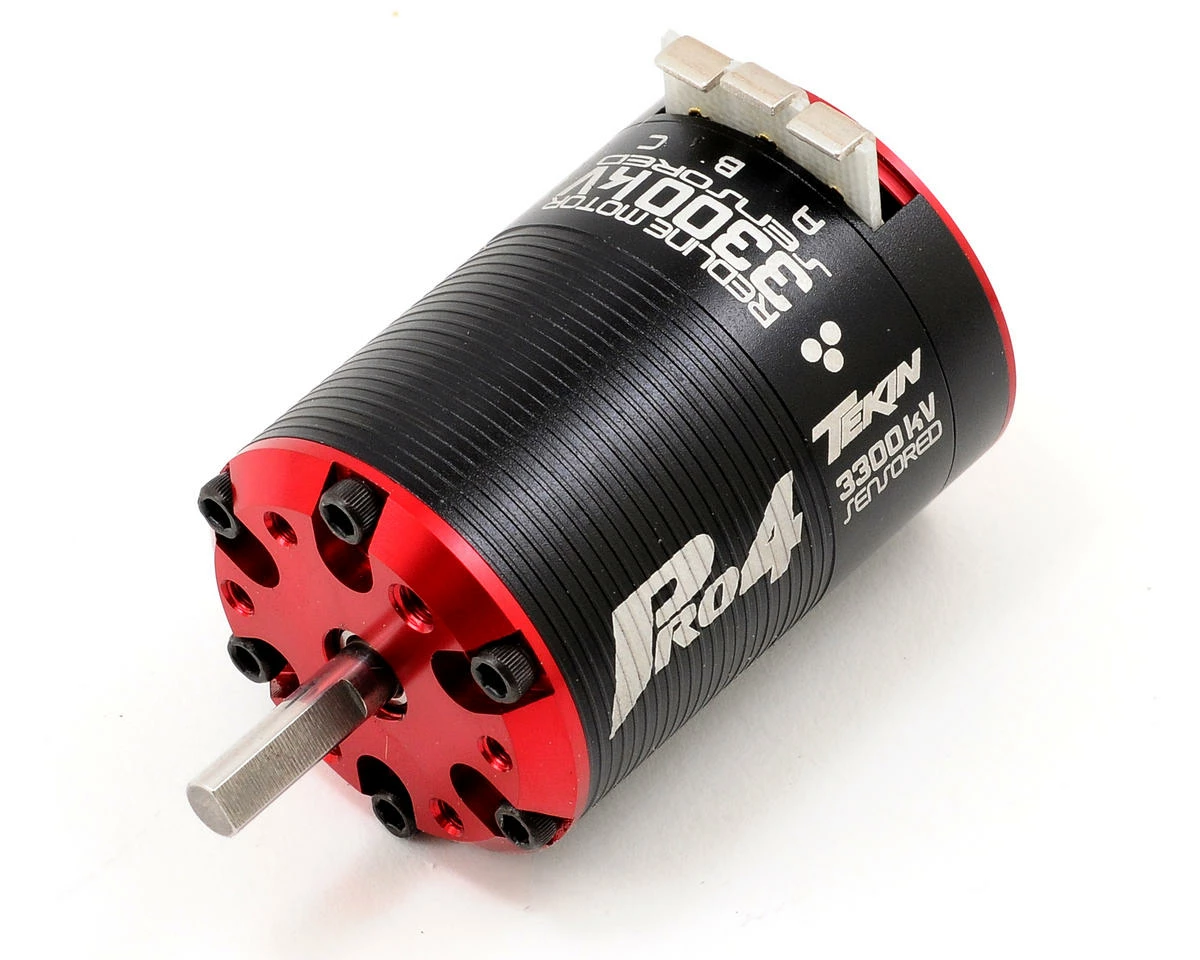

Tekin Pro4 4-Pole Brushless Motor w/5mm Shaft (3,300kV)

This is the Tekin 3,300kV Pro4 4-Pole Brushless Motor. Tekin’s Pro4 Motors set a new standard for 4 Wheel Drive Short Course performance. Utilizing the proven design of the T8 1:8th Scale motor, the Tekin Pro4 produces the torque and smooth power you demand for a 4×4 Short Course Truck. Specifically designed with KV ranges to complement 2s and 3s Lipo power systems, no other 10th scale motor on the market can deliver the power your 4×4 Short Course requires. Get a Tekin Pro4 Motor and never look back.

Features:

• 4 Pole 12 Slot Hi-torque Motor Design
• CNC Machined 6061 T6 Billet Aluminum Heatsink Can
• Neodymium Sintered Magnets
• Rebuildable Design
• High Purity Copper Windings Maximizes Efficiency
• Precision Engineered for Maximum Energy Conversion
• Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems
• High RPM ABEC5 Oversized Bearings

Specifications:
Motor Length: 2.1″ (52.9mm)
Diameter: 1.4″ (35.8mm)
Shaft: .60x.196″ (15.3x5mm)
Weight: 6.75oz (193g)
Turns: 2.5D
Voltage: 2S – 3S
kV: 3300
Rotor: 18.5mm

This product was added to our catalog on August 19, 2011
